Acid Mine Water Flows Case Study
A reduction in metal pollutants of 90%

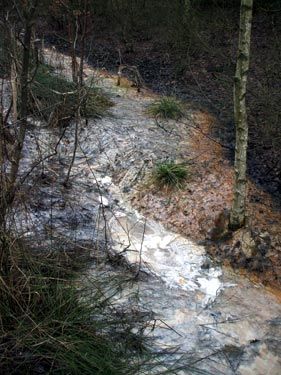

Acid mine waters flow from a site previously a coal mine. The site was re-vegetated, but the acid mine waters still flow from the site. These flows are rich in metals, minerals and sludges. The acidity of the flows are around 4.2pH.
![](/files/cache/b73d5691e6d1c9e0572928ce3d668c55_f40.jpg)
![](/files/4614/2477/9515/lagoon.jpg)
The flows emerge and are settled in a lagoon.

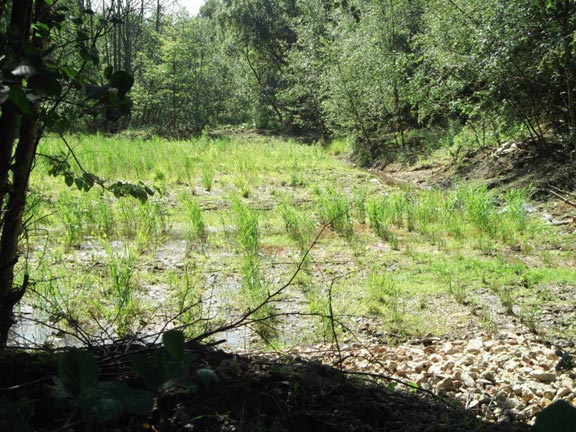

The flows then flow through a vertical flow reedbed.
![](/files/8414/2529/3344/first-planted.jpg)
![](/files/5114/2529/3336/first-growth.jpg)
![](/files/9314/2383/8253/t-new-rb-2.jpg)
Last year the reeds were fully grown, with seed heads forming on most stems.
![](/files/2514/2383/8303/DSCF3751.jpg)
![](/files/8914/2383/8348/DSCF3752.jpg)
![](/files/6014/2383/8375/DSCF2365.jpg)
The results from samples taken December 2013 are as follows.
![](/files/9714/2529/3301/sample-1.png)
![](/files/3714/2529/3310/sample-2.png)
The pH of the inflow was 3.9 and 6.6 for the outflow. The reduction in metals is 90%. The full system included a second reedbed. We re-built this second system just before Christmas. Once we get some good weather, we can get some photos.
